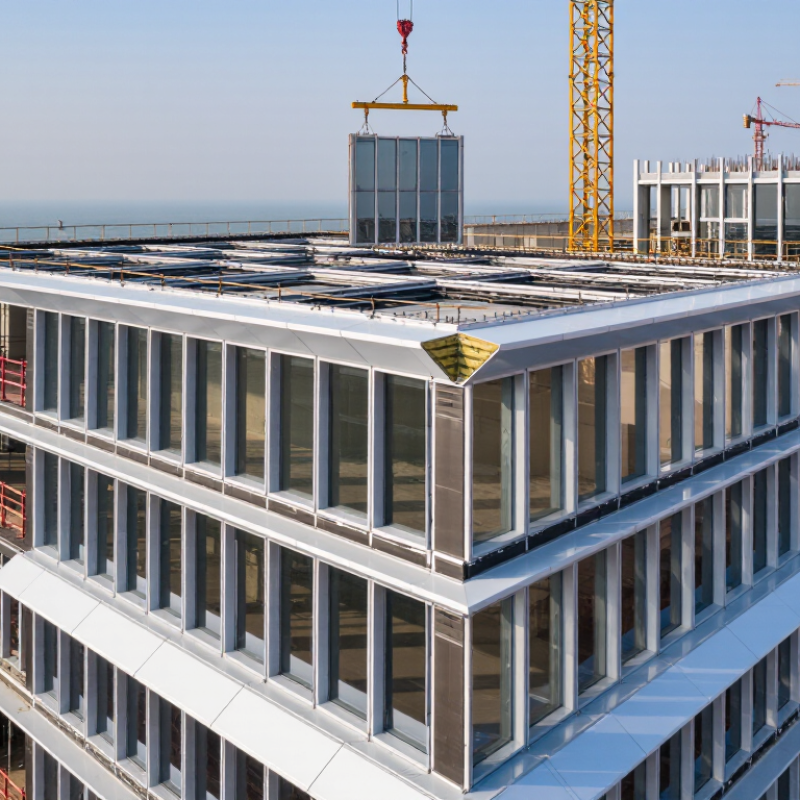

How to Choose Aluminium Systems for Global Projects

Choosing aluminium systems for a global project is not simply a matter of comparing profiles, finishes, or prices. The right decision begins with the building’s climate, function, exposure, and maintenance expectations. A coastal hospital faces salt, humidity, and strict hygiene demands. A high-rise in a cold region needs reliable thermal separation and controlled condensation. These details matter.

Dr. Stephen Selkowitz, a respected building-science and façade expert, has emphasized, “The façade is the interface between the building and the environment.” This principle remains highly practical. Aluminium systems must connect structural design, glazing, drainage, ventilation, fire strategy, and local installation skills. Performance data should be verified through recognized testing, not accepted from attractive brochures. Check wind pressure, air leakage, water resistance, thermal transmittance, acoustic performance, and hardware durability. Also examine how components will be fabricated and replaced years later.

Global procurement adds another layer of risk. A system may perform well in one market but fail when local tolerances, approved materials, or installer experience change. Supply continuity matters. So do technical support and documentation. I have seen projects underestimate small interfaces, especially around corners, thresholds, and movement joints. Those areas often create expensive problems.

No selection is perfect. Budget pressure can distort sound judgment. The cheapest option may become costly after installation. A stronger process compares lifecycle value, not only initial cost. This guide explains how to assess aluminium systems with practical evidence, technical discipline, and a willingness to question comfortable assumptions. That last part is easy to overlook.

How to Choose Aluminium Systems for Global Projects

Define Project Requirements: Climate, Loads, U-Values, and Service-Life Targets

Choosing aluminium systems for global projects starts with evidence, not a standard catalogue specification. Climate data should cover temperature swings, solar exposure, wind, rainfall, humidity, and coastal salt. A façade beside a tropical shoreline faces different risks from one in a dry, high-altitude city. Small details matter. Check drainage paths, gasket compatibility, thermal breaks, and movement joints during design reviews.

Loads must reflect the actual site and building geometry. Wind pressure can change sharply around corners, roof edges, and tall façades. Engineers should use local code data, verified wind studies, and project-specific structural calculations. The International Building Code and Eurocode 1 provide useful frameworks, but neither replaces local assessment. Glass weight, seismic drift, maintenance loads, and thermal movement also require review. Aluminium expands noticeably across long elevations. Ignoring this creates preventable stress.

U-values should match the climate zone and the whole window assembly, not only the frame. The International Energy Agency reports that buildings consumed about 30% of global final energy in 2022, making envelope performance a serious design issue. Set targets for the complete system, including glass, spacers, frames, and junctions. Service-life planning should follow ISO 15686 principles, with inspection intervals and replacement access defined early. Coastal exposure may shorten hardware and sealant life. A 50-year target can still be unrealistic without cleaning, drainage checks, and repair records. That is where many specifications become too optimistic. Pilot testing and mock-ups reveal weaknesses that drawings hide.

Compare Alloy Options: 6063-T5, 6063-T6, and EN AW-6060

Selecting an aluminium system starts with the alloy, not the catalogue drawing. ASTM B221/B221M and EN 755-2 show that temper and section thickness can change mechanical performance significantly. The numbers are not interchangeable.

6063-T5 is artificially aged after extrusion cooling. It usually offers moderate strength, reliable surface quality, and efficient production. It suits window frames, doors, partitions, and many architectural profiles. Typical minimum tensile strength is around 186 MPa under common specifications.

6063-T6 receives a stronger solution heat treatment and aging cycle. Its tensile strength can approach 241 MPa, depending on product form and specification. That extra strength may reduce deflection, but it can increase processing sensitivity and cost.

EN AW-6060 is common in European extrusions. EN 755-2 data generally places its strength below comparable 6063-T6 profiles, while maintaining excellent extrudability and anodizing potential. This makes it practical for lighter frames and detailed sections. Check the temper, not only the alloy name. T66 values may differ greatly from T5 values.

Field experience suggests a simple test. Place the profile beside the glass, gasket, and fasteners. Then review span, wind load, drainage, and thermal movement together.

A stronger alloy cannot repair poor geometry. Neither can a polished finish. Published values are minimums, not promises for every batch. Certificates, mill test reports, and independent inspection remain essential. I have seen designs over-specify T6 where a well-designed T5 section would perform adequately. That choice deserves reconsideration.

Verify Structural Capacity: Wind Loads, Deflection, and EN 1999-1-1

Choosing aluminium systems for global projects starts with structural evidence, not appearance. Wind loads should be established from the project location, terrain category, building height, and national requirements. EN 1991-1-4 often supports this assessment, while EN 1999-1-1 governs aluminium design principles. The relevant National Annex must be checked.

Small errors matter.

Review the alloy, temper, section geometry, and effective length before checking resistance. Aluminium can lose capacity through local buckling, especially in slender profiles. Connections deserve equal attention. Screws, bolts, welds, and bearing zones may control the design before the main frame does. Calculate ultimate limit states, including bending, shear, compression, interaction, and stability. Confirm partial factors and material properties for the selected design situation.

Deflection needs a separate review. A frame may resist wind safely but still move enough to damage seals, glass, finishes, or opening panels. Set serviceability limits from the project specification and system performance requirements. Check both instantaneous movement and repeated wind effects. I have seen designs pass a simple span check yet fail at mullion joints because connection flexibility was ignored. That mistake is easy to repeat. Deflection assumptions should be recorded clearly, including support conditions and load combinations. They are not always realistic. Site tolerances, temperature changes, drainage details, and uneven fixing can alter the result. Independent calculation review and physical testing provide stronger confidence, especially when drawings come from different countries or design teams.

Aluminium System Verification: Wind Load and Deflection

Illustrative serviceability check for an aluminium mullion with a 1.5 m tributary width, elastic modulus of 70 GPa, and second moment of area of 2.5 × 10-6 m4. Calculated deflection uses a simply supported beam model under a 2.0 kPa design wind pressure. The L/200 line is shown as a project performance criterion; final verification should follow EN 1999-1-1, the applicable wind actions in EN 1991-1-4, and the project specification.

At a 3.0 m span, the calculated deflection exceeds the illustrative L/200 limit under the stated wind pressure. A deeper or stronger section, reduced span, intermediate support, or revised structural arrangement may therefore be required.

Select Thermal Systems: Thermal Breaks and Uf Targets Below 2.0 W/m²K

Choosing aluminium systems for global projects requires more than comparing frame sizes and visible finishes. Thermal performance should guide the decision early. A thermal break separates the inner and outer aluminium sections with a low-conductivity insulating material. This reduces heat transfer through the frame and supports a lower Uf value. For demanding envelopes, specify a verified Uf target below 2.0 W/m²K. Check the calculation method carefully. Different software, boundary conditions, and frame configurations can produce different results. A supplier’s figure is useful, but project teams should request test evidence and declared assumptions.

Site conditions matter just as much. A system designed for a cold northern climate may behave differently in a hot, humid region. Review glazing thickness, corner joints, drainage paths, gaskets, and installation tolerances together. Small gaps can undermine a strong thermal calculation. Condensation risk should be assessed around frames, especially near steel connections and slab edges. Mock-up testing can reveal problems that drawings miss. It is not always convenient.

Experienced teams also compare performance with manufacturing reality. Very narrow profiles may look elegant, yet they can limit insulation depth or complicate assembly. Global projects need clear thermal data, compatible accessories, and installation guidance that local contractors can follow. Uf below 2.0 W/m²K is a valuable target, not a guarantee of whole-window performance. The final result depends on glass, spacers, joints, and workmanship. Some early specifications are simply too optimistic. Recheck them before procurement.

How to Choose Aluminium Systems for Global Projects - Select Thermal Systems: Thermal Breaks and Uf Targets Below 2.0 W/m²K

Indicative selection matrix for thermally improved aluminium window, door and curtain-wall systems
System category Typical thermal-break width Indicative frame Uf range Ability to meet Uf < 2.0 W/m²K Suitable project conditions Key selection considerations
Non-thermally broken aluminium None Approximately 5.0–7.0 W/m²K Generally not achievable Internal partitions, unconditioned spaces and mild applications where thermal performance is not a primary requirement High heat flow through the frame; increased risk of surface condensation in conditioned buildings
Basic thermal-break system 14–24 mm Approximately 2.0–3.0 W/m²K Usually above target Warm or moderate climates, low-rise residential buildings and projects with less demanding energy codes May require low-emissivity glazing, insulated spacers and careful frame-to-wall detailing to improve whole-window performance
Enhanced thermal-break system 24–34 mm Approximately 1.4–2.0 W/m²K Often achievable Most temperate climates, energy-conscious housing, offices and schools Confirm the exact section, glazing rebate, sash configuration and thermal calculation before specifying a target value
High-performance thermal-break system 34–42 mm or more Approximately 0.8–1.4 W/m²K Normally achievable Cold climates, high-performance façades, passive-design projects and buildings with strict energy targets Requires compatible glazing, reinforced thermal separators, continuous gaskets and accurate installation detailing
Thermally improved curtain wall Approx. 20–40 mm thermal isolators, depending on mullion and transom design Approximately 1.2–2.0 W/m²K for the frame section Achievable with optimized sections Multi-storey offices, hospitals, hotels and glazed commercial façades Mullion depth, pressure plates, spandrel zones, glass edge conditions and slab-edge interfaces can significantly affect the result
Lift-and-slide or large-panel system 30–45 mm, subject to panel size and hardware layout Approximately 1.4–2.2 W/m²K Possible, but configuration-sensitive Residential and hospitality projects requiring wide openings, daylight and operable glazed walls Large sashes, interlocks, tracks and perimeter seals can reduce thermal performance; test the complete assembly

Technical notes

Uf is the thermal transmittance of the frame only. It is not the same as Uw, which represents the complete window, including the frame, glazing and spacer.

The ranges are indicative design values. Final performance depends on profile geometry, frame size, glazing dimensions, reinforcement, gaskets, drainage details and the calculation or test method used.

For international projects, verify the selected configuration using a recognized method such as EN ISO 10077-2 or an applicable national or regional standard. Confirm air permeability, watertightness, wind resistance, condensation risk and local energy-code requirements separately.

Confirm Global Compliance: EN 755, ASTM B221, ISO 9001, and Local Codes

When selecting aluminium systems for global projects, compliance must begin with the exact product specification. EN 755 addresses dimensions, tolerances, and mechanical properties for extruded aluminium products. ASTM B221 covers extruded bars, profiles, rods, wires, and tubes. These standards are not interchangeable. Confirm the alloy, temper, section geometry, and applicable edition before approving drawings. Read the details.

A reliable supplier should provide mill certificates, inspection records, and traceability from billet to finished profile. ISO 9001 demonstrates a controlled quality management system, but it does not prove that every product meets project requirements. Check sampling methods, test laboratories, and corrective-action records. Ask how nonconforming material is isolated. Small gaps matter.

Local codes still control the final application. They may define wind loads, fire performance, thermal values, drainage, fasteners, or structural calculations. Compare these requirements with the tested system, not only with catalogue data. On site, inspect profile labels, protective wrapping, and batch references before installation. I have seen approved drawings fail during delivery because documentation was incomplete. That mistake is preventable, though not always obvious. Independent review is worthwhile when standards overlap or interpretations differ.
